Vertical balancing machine for rotors up to 30 kg Distec - Schenck Vietnam

  • Compact design
  • Small space requirement
  • Quick and uncomplicated starting operation
  • Can be installed without foundation
  • Highest measuring accuracy
  • Ergonomic operating concept
  • Can be equipped for axial or radial compensation of unbalance
  • „crane hook solution“

Design

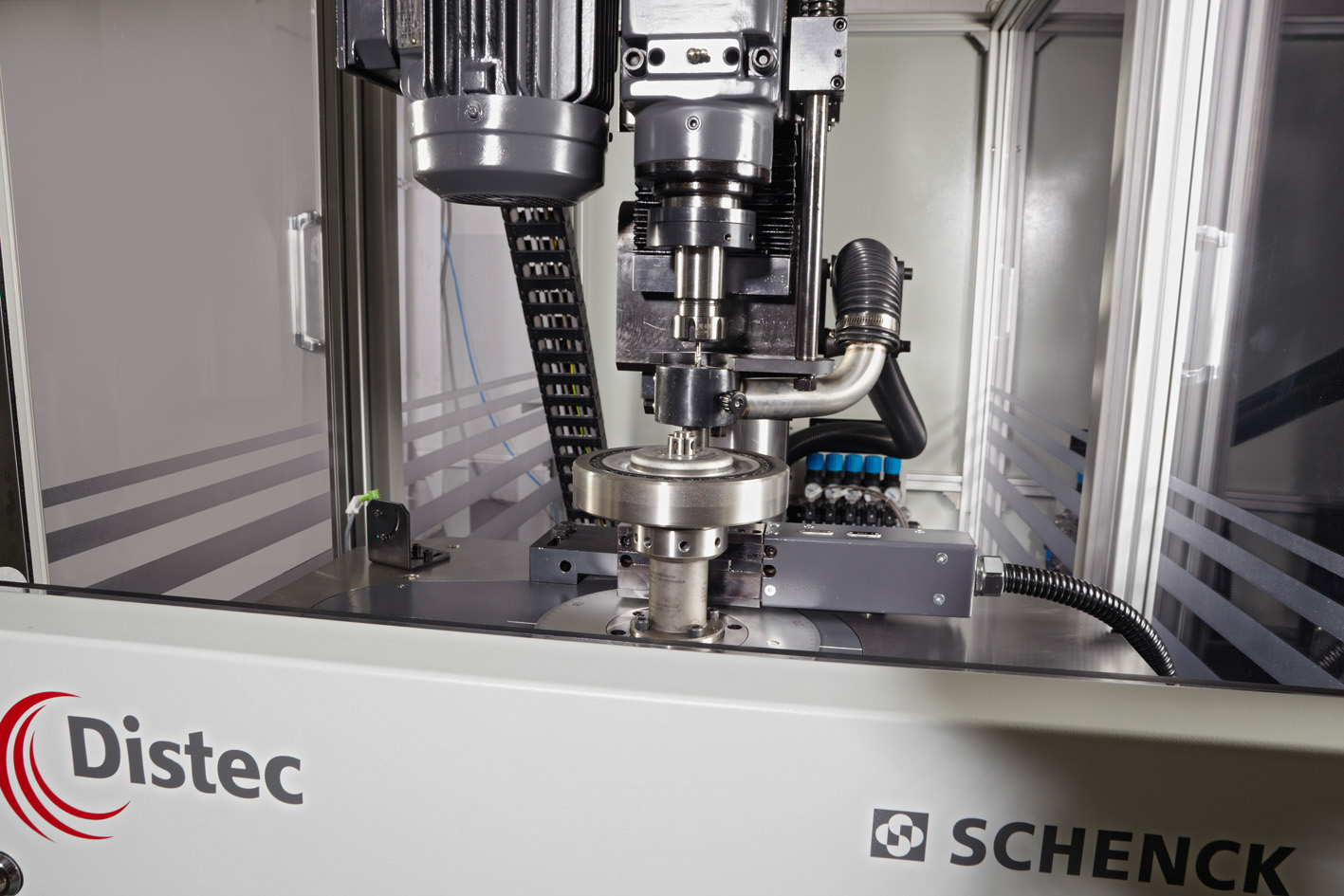

The machine consists of a vertical balancing device with an attached, automatically operating drilling unit. The body to be balanced is clamped on the balancing machine by means of a spring-force actuated receptacle that is pneumatically released. The measuring device CAB 870 is used for determining the unbalance and computation of compensation.

Special features

  • Short lead time to delivery
  • Universally applicable
  • Automatic compensation through axial or radial drilling
  • Automatic measuring cycle is selectable with stepless, adjustable values for run-up, measuring and braking time



Design

Application area

Distec is a versatile automatic balancing machine for balancing disc-shaped rotors, like flywheel, brake disc, twin-mass flywheel, pulley, vibration damper, gear wheel, drive disc, brake drum, differential housing, clutch parts, converter components, double clutch components, hybrid rotors.
The rotors are received in their centring hole, the unbalance measurement occurs on one or two levels.

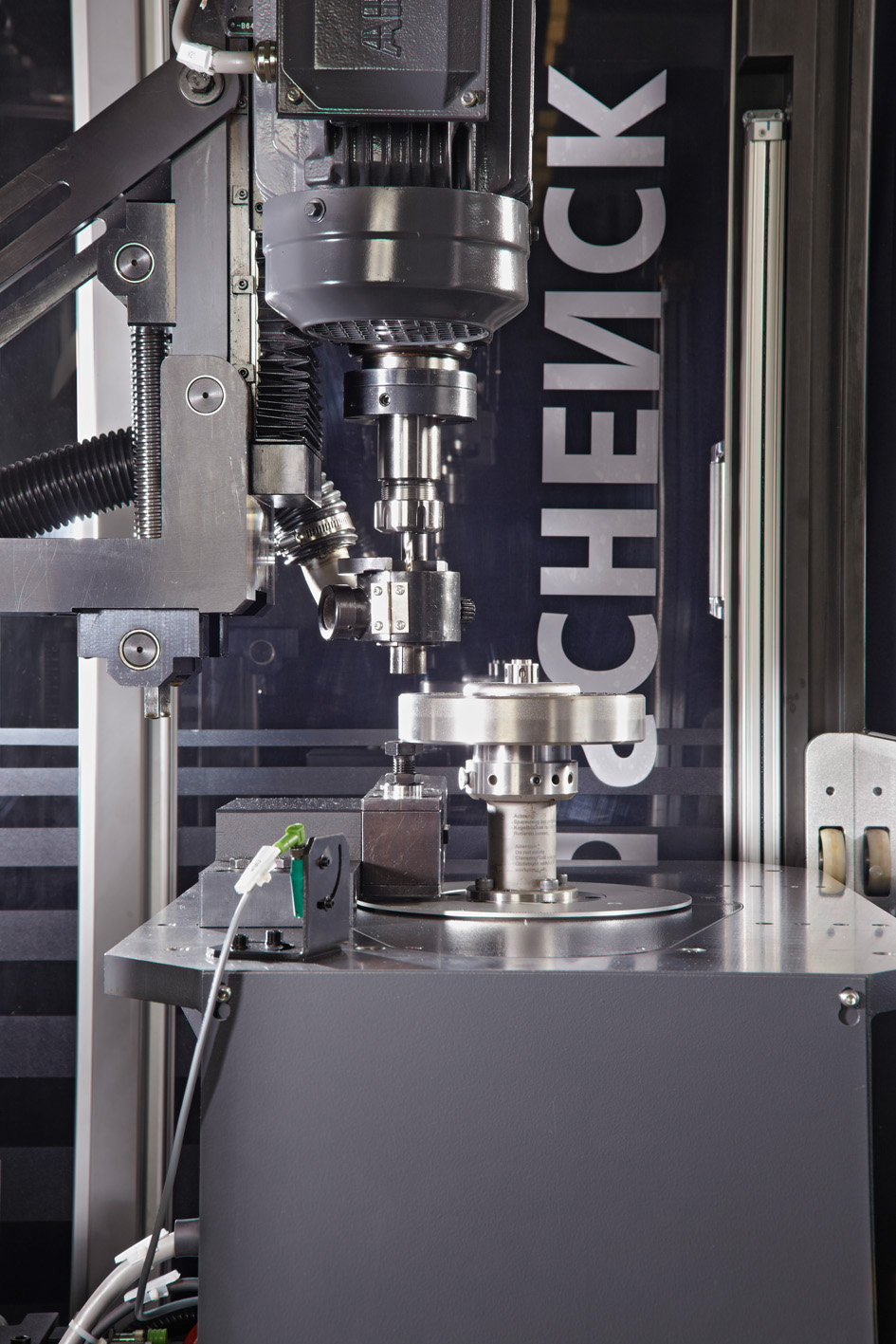

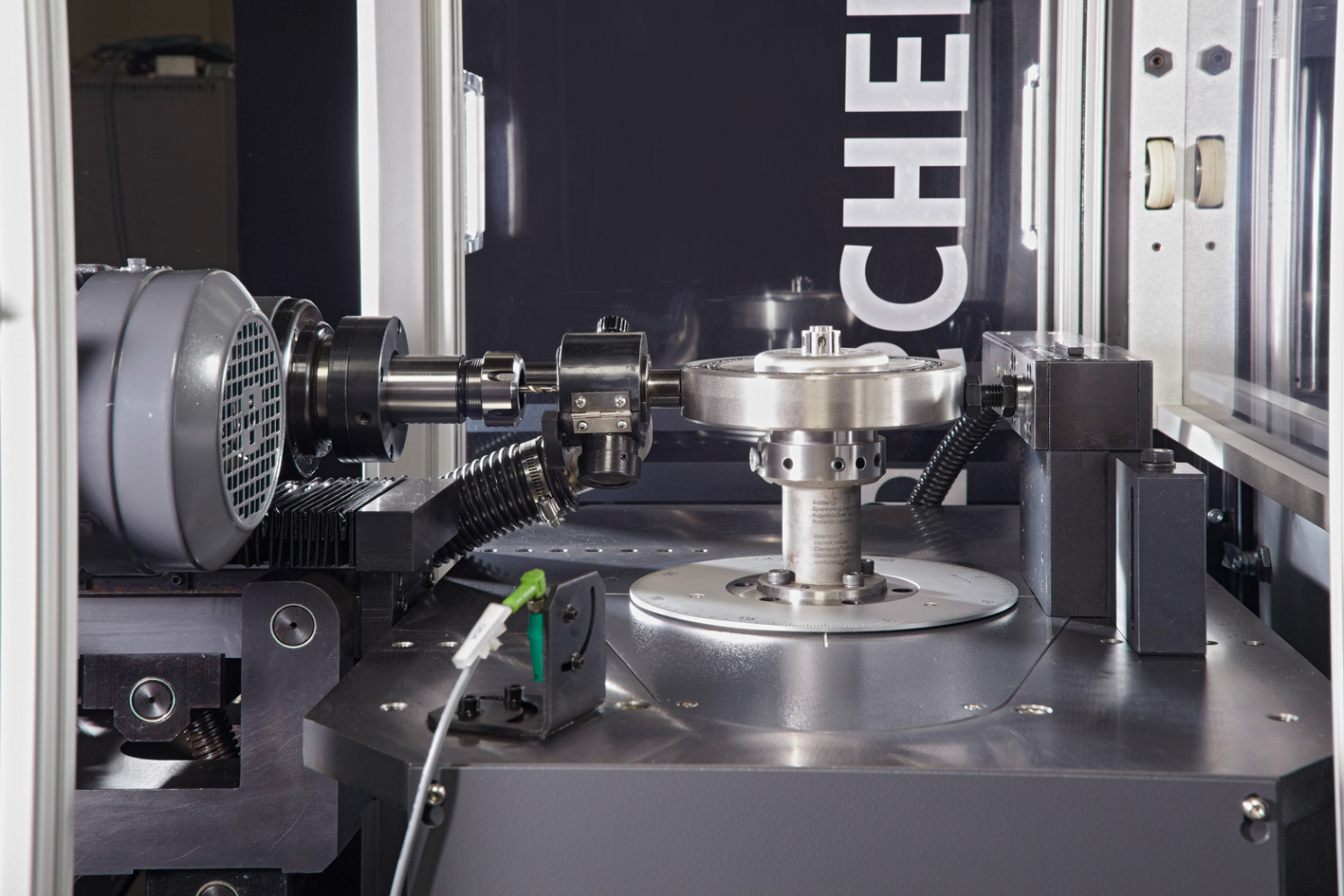

The unbalance compensations occur through vertical or horizontal drilling, which can be converted independently of work piece in a user friendly/easy manner.

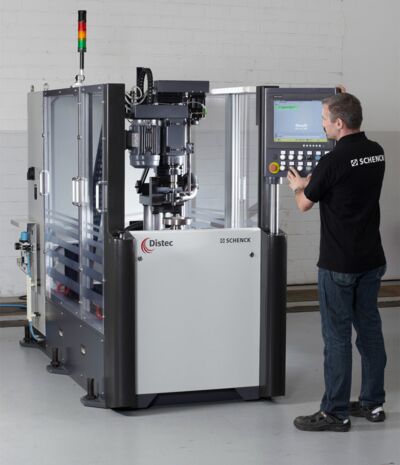

Distec allows both manual as well as automatic loading. The manual loading occurs through the pneumatically opening front disc. Automatic loading can be carried out by a loading portal, a pallet belt-conveyor, or a robot.

Technical data
Data at a glance

Rotor
Weight, max. 1)   [kg]  30
Rotor diameter, max.   [mm]  500
Rotor height, max.   [mm]  150

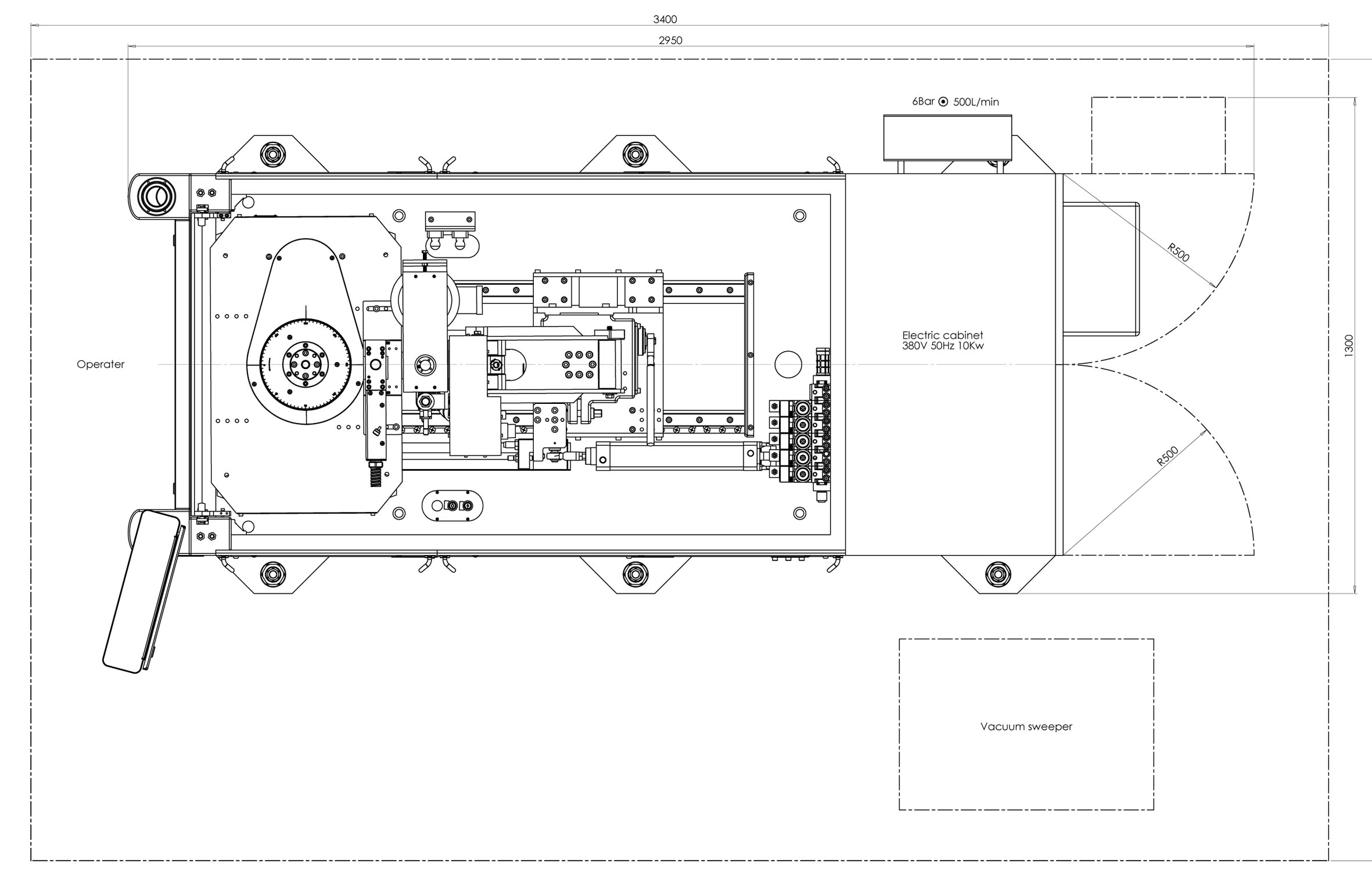

Maschine
Width  [mm]  1200
Depth  [mm]  2700
Height  [mm]  1800
Total weight  [kg]  2100
Mains connections    400 V / 3 PH / 50/60 Hz
Measurement uncertainty 2)  [gmm]  4
2-coloured painting    RAL 7035 (Lichtgrau), RAL 7024 (Graphitgrau)
Measuring unit
    CAB 870 with touchscreen-operation
Options
    Interface for auto load/unload
    Vacuum unit
    Extension rotor weight max. 70 kg 1)
    Double drilling spindle
    Measurement static / dynamic

1) rotor plus adapter
2) scattering part of the measurement uncertainty
