460 KBTU

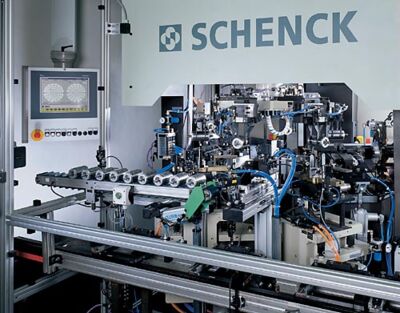

Transfer Balancing Machine for Wound Armatures

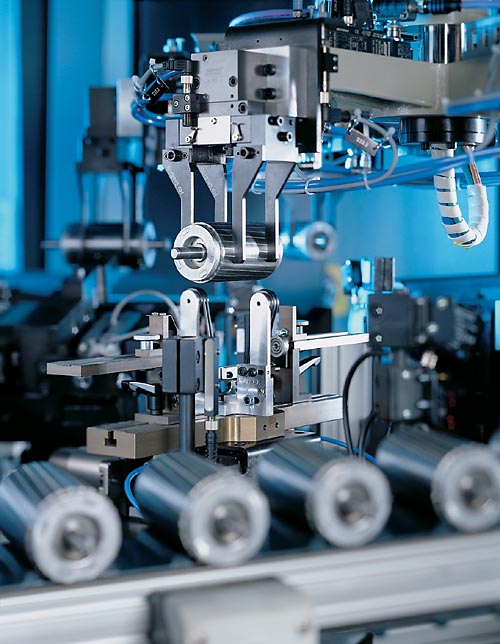

  • Integrated overhead rotary transfer
  • Machine base of mineral casting with good damping characteristics
  • Automatic sequence, secured, controlled by Soft PLC
  • NC axes for all movements
  • Integration with production lines
  • Powerful PC based industrial measuring unit
  • Photo based operating manual for conversion of machine
  • Picture and text based fault diagnosis
  • Teleservice for measuring and control system

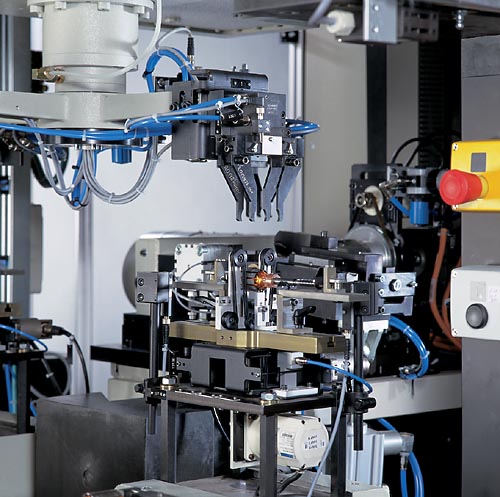

Correction methods

Profile milling:
Polar unbalance correction at the correct angle, suitable for most applications.

Polar slot milling:
The milling spindle with twin cutter is displaced axially to shift the effect of the milling operation to the polar direction of the unbalance.

Slot milling:
A variable method for quasi-polar or component correction. High flexibility through employment of single or multiple cutters and adaptation of the component angle.
All correction methods can be used for armatures with inclined or straight stack slots. In addition to material removal by plunge milling,  weight removal can be increased by controlled axial cutter advancing.
Design

Range of application

Measurement and correction of unbalance of armatures of various sizes. Use of the machine in production
lines for very high production volumes.
Unbalance correction by milling into the stack (profile/slot milling) in one or two planes.

Design

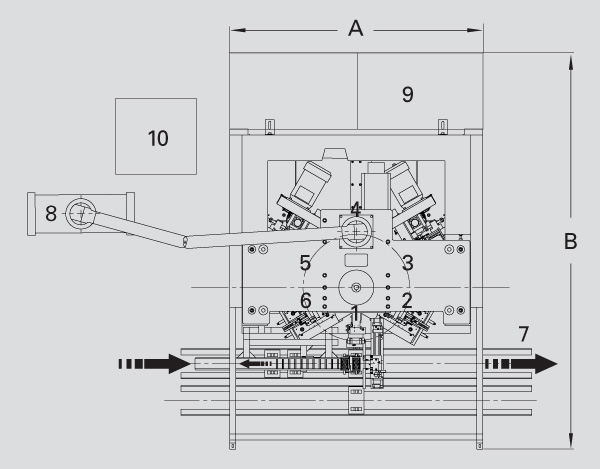

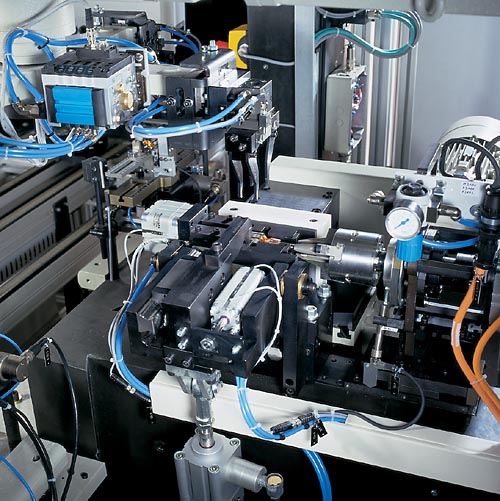

Six-station machine with fully automatic sequence of operations. Station-to-station transfer and integration
with peripheral equipment through integrated rotary transport.
Work-pieces can be delivered to the machine by conveyor or pallet.
Technical data
Technical data at a glance    461 KBTU  462 KBTU  463 KBTU
Measuring unit    CAB 850  CAB 850  CAB 850
Polar profile milling    •
Slot milling in components      •
Polar slot milling        •
Commutator armatures
Weight  [kg]  0,1 - 2  0,1 - 2  0,1 - 2
Diameter  [mm]  24 - 82  24 - 66  24 - 40
Length  [mm]  69 - 250  90 - 250  90 - 190
Stack height  [mm]  12 - 65  30 - 65  30 - 50
Machine
Width A 2)  [mm]  1660  1660  1660
Depth B 2)  [mm]  2600  2600  2600
Height C 2)  [mm]  2780  2780  2780
Balancing speed  [min -1]  1500 - 2100  1500 - 2100  1800 - 2100
Measuring uncertainty  [gmm]  0,02 - 0,1  0,02 - 0,1  0,02 - 0,1
Achievable tolerance  [gmm]  0,4  0,1  0,2
Cycle time(plunge-milling)  [s]  4,5 - 5,0  6 - 7  4,5 - 5,0
Cycle time (axial-milling)  [s]  5,5 - 6,0  7 - 8  5,5 - 6,0
Change-over time  [min]  5 - 15  5 - 15  5 - 15
Air pressure  [kPa]  450  450  450
Air consumption  [m3/h]  3,0  3,0  3,0
Power consumtion  [kVA]  15  15  15

Basic machine  Order No.  R0210100.01  R0210200.01  R0210300.01
Options
Mill slot recognition, measuring station  Order No.  R0210203.01
Chip extractor  Order No.  R0210104.01  R0210204.01  R0210304.01

1) Acc. To DIN 1319, 95% probability, work-piece dependent
2) Data non-binding, dependent on the respective equipment supplied
3) Rotor-dependent
