Fully automatic robot-enhanced mounting machine 150 TBUR - Schenck Vietnam

The high-end mounting machine 150TBUR provides maximum performance and flexibility for your tire and wheel production. The big working range of 14"-24" covers any production program with ease.

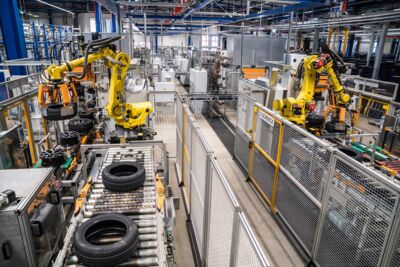

The patented robot-based, two-station machine concept allows for a sparing tire mounting procedure, while maintaining shortest cycle times even in a mixed mode operation. Additionally, the optional robot-based matching function reduces space requirements and investments significantly.

The 150TBUR is digital-ready, which enables an easy full-scale Loxeo integration. Loxeo offer various features for machine diagnosis in terms of performance and status monitoring.

Design

• Separate feed-in conveyors for rims and tires
• Optional camera stations in both the tire and rim feed-in, for the recognition of match-marks
• Spray lubrication for the rims
• Brush-based lubrication system for the upper and lower tire bead
• Robot-based mounting of the first bead with match-mark indexing for the matching function
• Mounting station for the mounting of the second bead

• Flexible production over the entire working range in a mixed operation mode
• Digital-ready machine design for a simple Loxeo integration
• Patented robot-based match functionality ensure significant cost and space savings
• Sparing two station mounting concept with robot-assisted mounting of the first tire bead
• The two station mounting concept enables the machine to realize shortest cycle times while preventing tire stress
• High-precise camera recognition of the match-marks with two camera stations in the rim and tire feed-in
